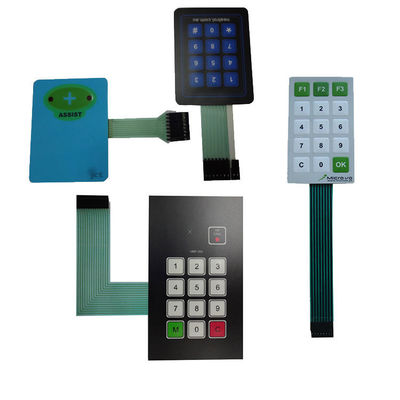

30°C To 80°C Metal Dome Membrane Switch Featuring Embossed And Tactile Texture And Real Adhesive 3M467MP Optimized For Operation

Product Description:

The Metal Dome Membrane Switch is a high-quality tactile metal dome switch designed to provide reliable and consistent performance in various electronic applications. This switch integrates a membrane switch pad with metal dome technology to deliver a highly tactile and responsive user experience. It is an ideal choice for devices requiring precise tactile feedback combined with durability and longevity.

One of the key features of this tactile membrane keypad is its embossed and tactile design, which enhances the user's ability to interact with the switch intuitively. The embossed structure ensures that each key or button is clearly defined, providing a satisfying tactile response upon actuation. This makes the metal dome membrane switch especially suitable for applications where touch sensitivity and user feedback are critical, such as industrial control panels, medical devices, consumer electronics, and automotive interfaces.

The switch utilizes premium rear adhesives, specifically the 3M467 and 3M9080, to ensure secure and long-lasting attachment to various surfaces. These adhesives are known for their strong bonding capabilities and endurance, which help maintain the switch’s position and performance even under challenging environmental conditions. This reliable adhesion is crucial for maintaining the integrity of the membrane switch pad over extended periods of use.

In terms of environmental tolerance, the Metal Dome Membrane Switch boasts an impressive range of operating and storage conditions. It is capable of functioning efficiently within an operating temperature range of -20°C to +70°C, making it suitable for use in both cold and warm environments. For storage, it can withstand temperatures from -30°C up to +80°C without any degradation in performance or material quality. This wide temperature tolerance ensures that the tactile membrane keypad remains reliable throughout its lifecycle, regardless of external temperature fluctuations.

Additionally, the metal dome membrane switch is designed to endure high humidity levels, specifically within the range of 90% to 95% relative humidity at +40°C for up to 240 hours. This durability against moisture and humidity makes it an excellent choice for applications in humid or damp environments, where conventional switches might fail or degrade over time. The robust construction and materials used in this tactile metal dome switch contribute to its resistance against corrosion and other humidity-related damages.

Overall, this tactile metal dome switch combines the best characteristics of membrane switch technology with the tactile responsiveness of metal domes, resulting in a membrane switch pad that is both functional and user-friendly. Its embossed and tactile features, coupled with reliable 3M adhesives and excellent environmental resistance, make it a dependable component for a wide variety of industries and applications. Whether you need a tactile membrane keypad for a rugged industrial environment or a sensitive control interface for consumer electronics, this metal dome membrane switch offers exceptional performance and longevity.

Applications:

The Metal Dome Membrane Switch, branded under OEM/LF and manufactured in Shenzhen, is a highly reliable and versatile input device widely used across various applications and scenarios. Certified with ISO9001:2015, this tactile metal dome switch is designed to deliver excellent performance with a lifecycle of up to 1,000,000 cycles, ensuring long-lasting durability in demanding environments. With an operating temperature range from -40°C to +80°C and a working current of ≤ 100mA, it performs consistently in both extreme cold and heat conditions, making it suitable for diverse industrial and commercial uses.

This membrane switch pad is ideal for use in consumer electronics, medical devices, and industrial control panels where tactile feedback and precision are essential. Its thin, flexible design enables seamless integration into compact devices such as remote controls, handheld gadgets, and medical monitors. The Metal Dome Membrane Switch also finds extensive application in automotive dashboards and home appliance control panels, where durability and responsiveness are critical for user satisfaction and safety.

Thanks to its customizable color options, including Pantone/RAL colors, gray, blue, and silver, the Metal Dome Membrane Switch can be tailored to fit aesthetic requirements of various brands and products. The packaging is flexible as well, with options including PE bags, cartons, or according to the customer’s specific requests, ensuring safe delivery and easy handling. Although the minimum order quantity is just 1 piece, pricing is based on the design complexity, allowing for cost-effective prototyping and production runs.

The Metal Dome Membrane Switch is especially favored in environments where tactile feedback is crucial, such as control panels in manufacturing facilities, medical equipment interfaces, and user control pads in consumer electronics. Its robust construction allows it to withstand frequent use and harsh conditions, while maintaining reliable operation within the temperature range of -20°C to +70°C during regular use. Payment terms are straightforward with TT in advance, and delivery times are flexible to be discussed based on the specific project requirements.

Overall, the OEM/LF Metal Dome Membrane Switch combines high quality, customizable features, and durability, making it an excellent choice for applications requiring a dependable membrane switch pad with tactile metal dome switch technology.

Customization:

Our OEM/LF Metal Dome Membrane Switch offers exceptional customization services to meet your specific needs. Manufactured in Shenzhen and certified with ISO9001:2015, this product ensures high quality and reliability. With a minimum order quantity of just 1 Pc, we provide flexible solutions priced based on your unique design requirements.

The metal dome tactile switch features excellent insulation resistance of over 100 Megaohms, operating reliably within a temperature range of -40°C to +80°C. The rear adhesive options include premium 3M467 and 3M9080 tapes, ensuring secure installation. The tactile membrane keypad supports an operating temperature of -20°C to +70°C, making it suitable for various environments.

Available colors include Pantone and RAL color matching, as well as standard gray, blue, and silver finishes, allowing you to customize the tactile metal dome switch to your brand’s aesthetic. Packaging is flexible, offered in PE bags, cartons, or according to your specific requests.

Delivery time is to be discussed to best fit your schedule, and payment terms are TT in advance. Trust OEM/LF for customized tactile membrane keypad solutions that combine durability, performance, and design flexibility.

Support and Services:

Our Metal Dome Membrane Switch product is designed for durability and reliable tactile feedback. For technical support, please ensure that your installation follows the specified electrical and environmental guidelines to optimize performance and longevity.

When handling the Metal Dome Membrane Switch, avoid excessive force or bending to maintain the integrity of the metal domes and circuit layers. Proper cleaning with a soft, dry cloth is recommended; do not use harsh chemicals or abrasive materials.

For troubleshooting common issues, verify the connection continuity and ensure that the switch is properly aligned within the device assembly. If the switch exhibits inconsistent tactile response or electrical failures, inspect for any mechanical damage or contamination.

We offer comprehensive services including custom design consultation, rapid prototyping, and volume manufacturing to meet your specific application requirements. Our engineering team is available to support integration, testing, and optimization to ensure seamless operation within your product.

Regular updates and maintenance guidelines are provided to prolong the life of your Metal Dome Membrane Switch. Please refer to our technical documentation for detailed specifications, installation instructions, and warranty information.

Packing and Shipping:

Product Packaging: The Metal Dome Membrane Switch is carefully packaged to ensure protection during transit. Each switch is individually sealed in anti-static bags to prevent damage from electrostatic discharge. The switches are then placed in sturdy cardboard boxes with appropriate cushioning materials to avoid any mechanical damage. Packaging labels include product specifications, quantity, and handling instructions.

Shipping: We offer reliable shipping options to deliver the Metal Dome Membrane Switch products safely and on time. Depending on the destination, shipments can be sent via air freight, sea freight, or courier services. All shipments are tracked and insured to guarantee secure delivery. Customers will receive tracking information and estimated delivery dates upon dispatch.

FAQ:

Q1: What is the brand and model number of the Metal Dome Membrane Switch?

A1: The brand name is OEM/LF, and the model number is also OEM/LF.

Q2: Where is the Metal Dome Membrane Switch manufactured?

A2: It is manufactured in Shenzhen.

Q3: What certifications does the Metal Dome Membrane Switch have?

A3: The product is certified with ISO9001:2015.

Q4: What is the minimum order quantity for this product?

A4: The minimum order quantity is 1 piece.

Q5: How is the Metal Dome Membrane Switch packaged for delivery?

A5: Packaging is done using PE bags, cartons, or according to the customer's request.

Q6: What are the payment terms for ordering the Metal Dome Membrane Switch?

A6: Payment terms are TT (Telegraphic Transfer) in advance.

Q7: How is the pricing determined for the Metal Dome Membrane Switch?

A7: The price is based on the design requirements.

Q8: What is the typical delivery time for this product?

A8: The delivery time is to be discussed based on the order details.
